SiriusXM Satellite Radio Truck Antenna with 16 Foot Cable

The SXMT16 Satellite Radio Mirror Mount Truck Antenna offers high quality signal with an extended flex tubing and a mirror mount bracket to allow for secure mounting.

Antenna Features

• Works with all Satellite Radio Receivers
• Super strong flex tubing

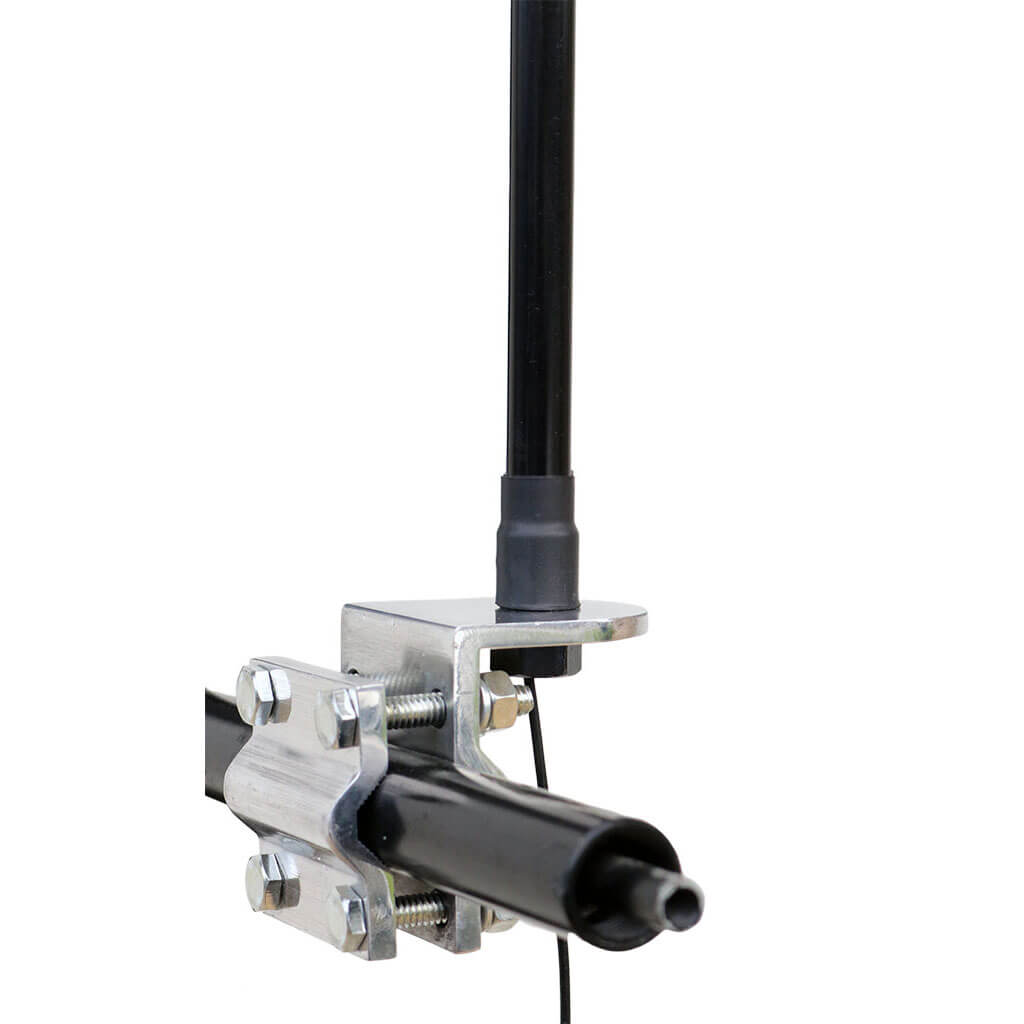

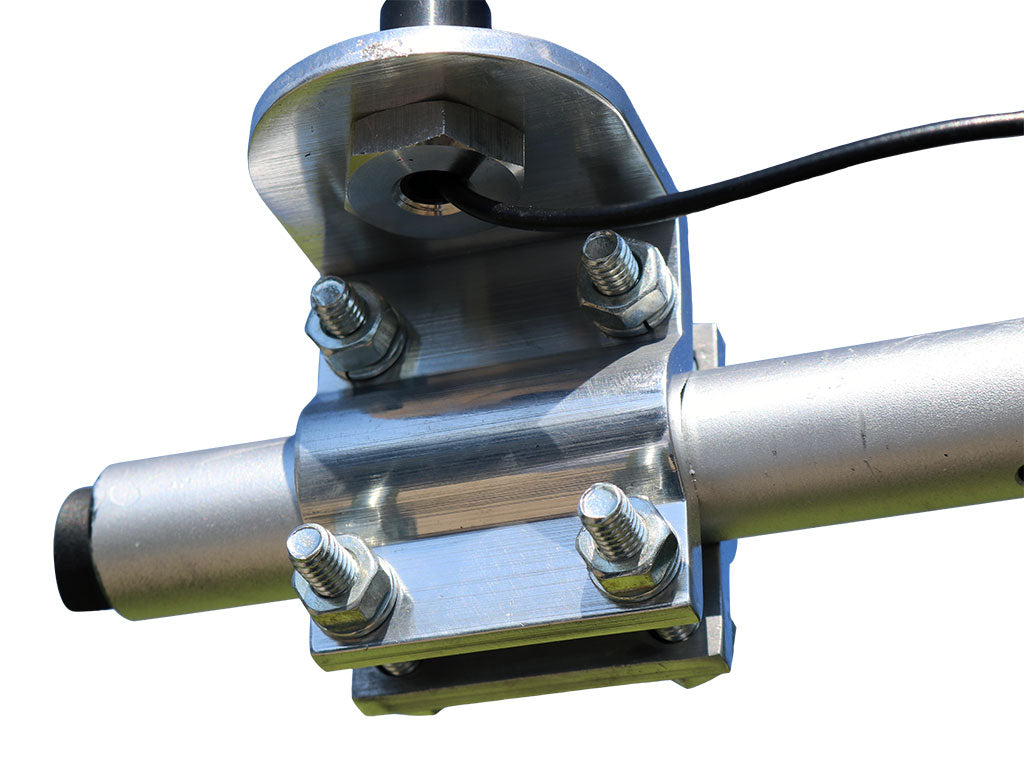

• Easy Installation on Truck Mirror or Support Bar
• Watertight Construction

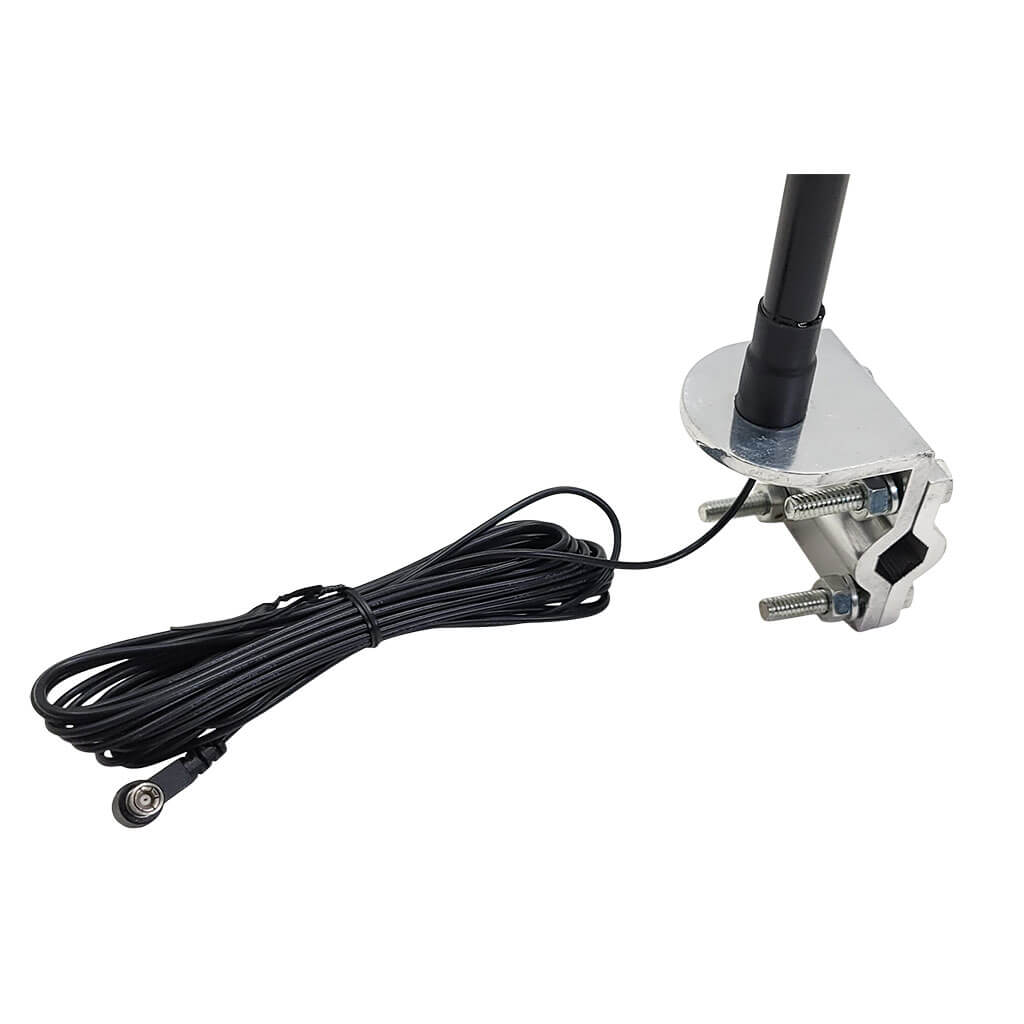

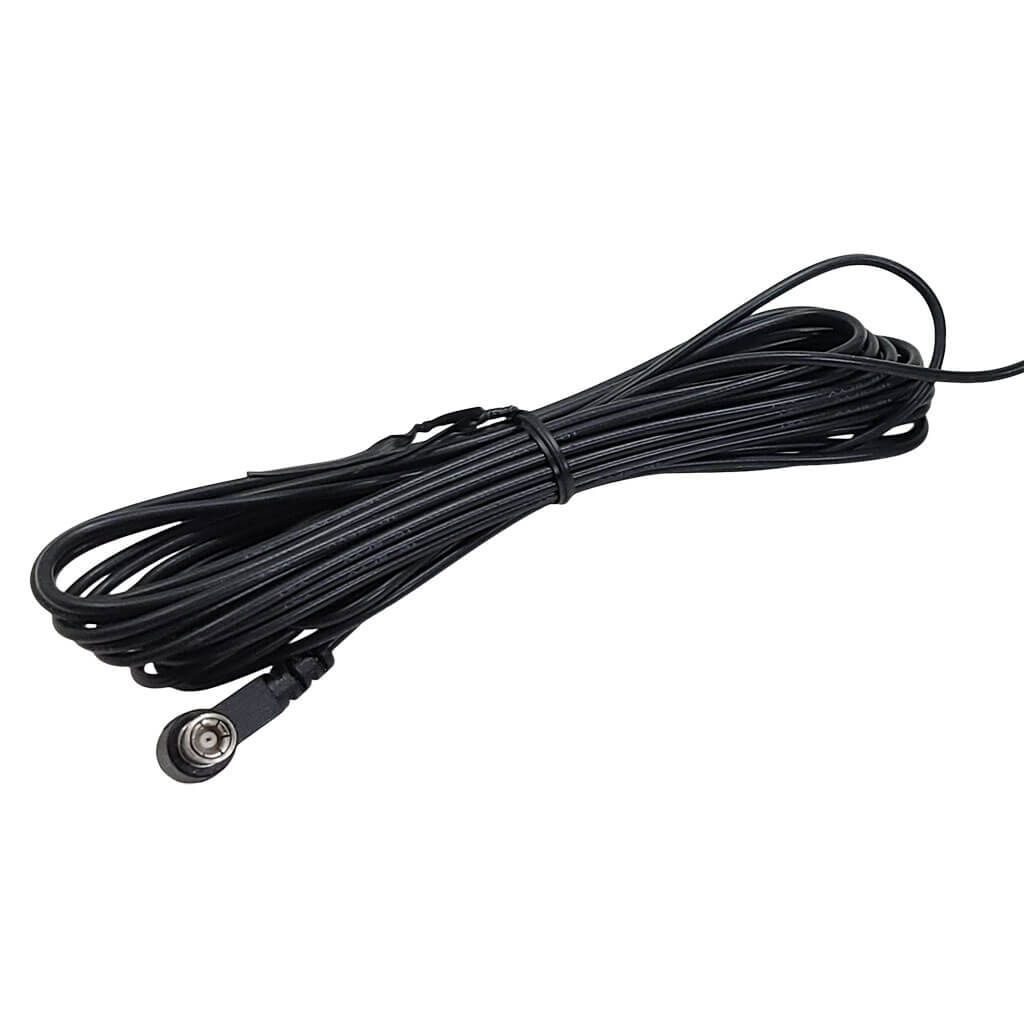

• Attached 16 Foot Low Loss Cable with Right Angle SMB Connector

• Includes All Installation Hardware
• Specifically Designed to Endure the Strong Wind Currents and Abuse and Deliver the Highest Possible Signal Quality


Compatible Receivers

This antenna will work with all Satellite Radio receivers and Docks/Cradles

Technical Specs

• Model #: SXMT16

• Manufacturer: Pixel Technologies

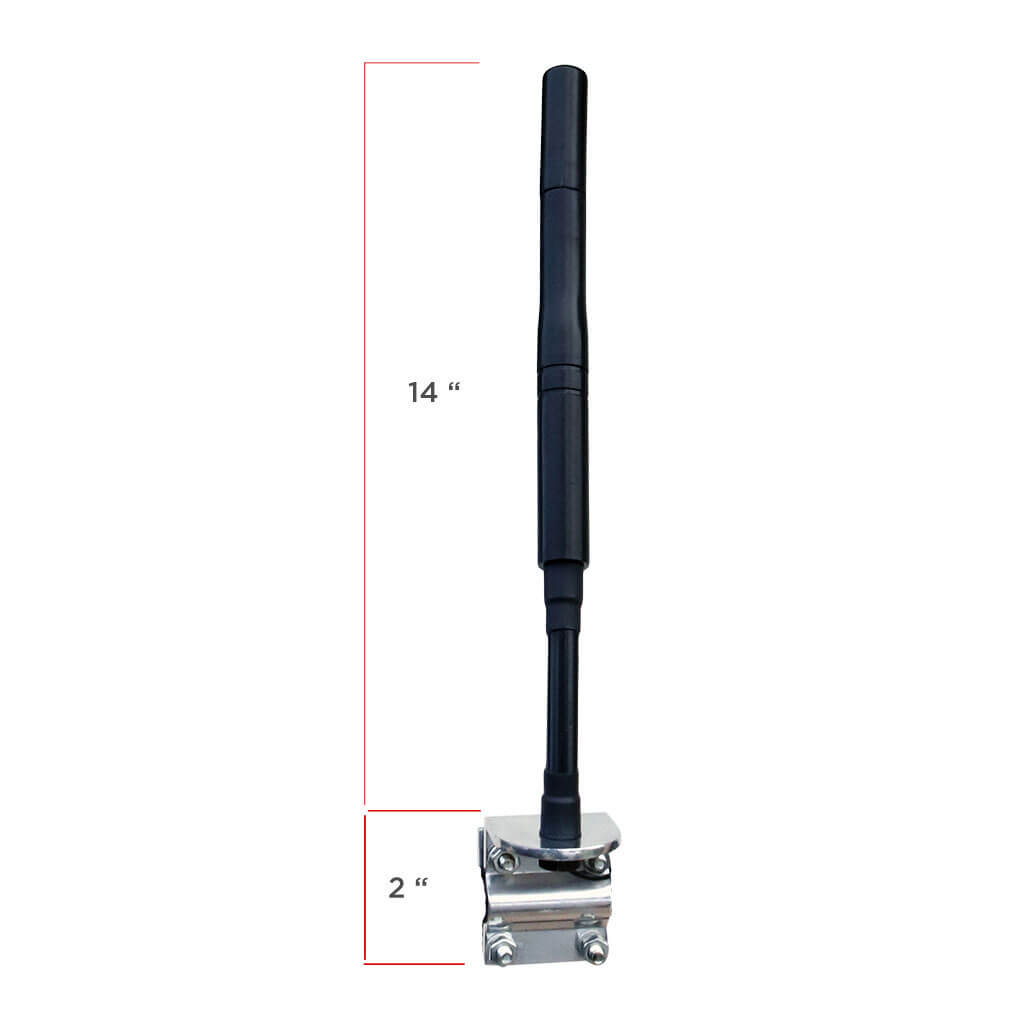

• Antenna Height: 16" tall with mounting base

• Antenna Width: 1" wide

• Base Width: 2.5" wide
• Weight: 10 ounces
• Frequency:  2320 to 2345 MHz
• Gain 2 d Bic (20-60 deg elevation)
• Bandwidth:  12.5 MHz
• MHz Impedance:  50 ohms
• Polarization LHCP (20-60 deg elevation)
• Linear (Horizon)
• Gain:  30 dB, typical
• Noise Figure:  1.0 dB, maximum
• Power: 4.5 Vdc, nominal
• Current Drain:  60 mA, maximum
• Unwanted Signal Rejection: 40 dB minimum

• Type:  Coaxial RG-174
• Length:  16 feet/
• Connector: SMB female
• Housing Material:  Black ASA, UV Stable
• RV:1.37” Diam base. 0.312” hole
• Adjustable Angle 0 to 35 degree slope
• Rated Wind Velocity:  150 mph
• Weight: 0.25 Lbs w/out Cable
• Temperature:  -40 °C to +105 °C, operating
• -45 °C to +120 °C, storage

Package Includes

• Truck Antenna with Clamp
• 16 Foot Cable (Attached)
